Each MTL factory has a R&D team with full-time engineers. The population of technical staff to total employees is 22%, most R&D projects come from the market demand and are self-selected according to industry development. On average 3-5 new and special products per month are developed according to the market needs, and introduced to customer timely. In the process of technological development, the overcoming challenges gradually promote technological accumulation of MTL. Sufficient resources of special material and special production methods are provided for researching. The establishment of MTL R&D Center and MTL Technology Committee contribute to the technology innovation.
Quality Technology Center
Overall planning the internal quality and technical roadmap, and standards.
Engineering production center
A technical team of nearly 200 people with capability of supporting 300 projects per day.
R&D center
A professional R&D team with nearly 50 patents through internal development.
Automated Guided Vehicle System
Laser drilling machine
Verify repair system after resin plugging
Major Equipment
Vacuum etching line
Automatic board transfer system
CNC routing machine
MTL is deeply involved in prototype, small to medium volume, and special board fabrication with good delivery performance.
20000 ㎡
Monthly production capacity
20000 projects
Monthly project quantities
Sample production
Lead time
Double sided
4 days
4 Layers
5 days
6 Layers
6 days
8 Layers
7 days
10 Layers
8-10 days
Batch Production
Lead time
Small batch production
5-10 days
Medium batch production
8-24 days
Expedited service
The fastest delivery time is 24 hours for sample orders.
ltems
Sample capabilities
Small/Medium batch capabilities
Layer count
1-108L
1-46L
Finish board thickness
0.2mm - 10.0mm
0.4mm - 6.0mm
Max panel size
610mm * 1200mm
610mm * 1200mm
Finish copper thickness
0.5OZ - 12OZ
0.5OZ - 6OZ
Min line width/space
2.5mil / 2.5mil
3mil / 3mil
Min finish hole size
0.1mm
0.15mm
Max aspect ratio
25:1
12:1
Impedance control tolerance
+/-10%
+/-10%
Surface finishes： HASL (LF), ENlG, lmmersion Tin, lmmersion silver, Golden finger, Full board with hard gold plating, OSP, ENEPlG, Selective hard gold plating.
Regular materials:： ? FR-4 TG150/TG170, Rogers, Arlon, Taconic, TUC TU-872 SLK, TU-883,Panasonic M6/M7, Bergguist etc.
Special technologies： Blind & buried vias, POFV, edge plating, castellated holes, step mounting holes, controlled depth holes, metal based (core), step gold finger, back drill,partial hybrid pressing, bus bar,embedded coin, embedded ceramic etc.
★ Strictly in accordance with the quality management system and develop the awareness of making each PCB with superior quality.
★ Do it right the first time.
★ People of involvement and total process control.
★ Target and confidence in 100% quality assurance
★ Acceptance standard: Customer requirements, IPC standard, GJB362
Quality system

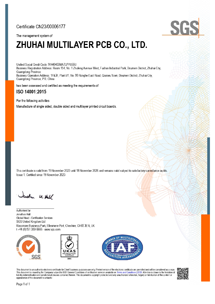

Based on ISO 9001 quality system,

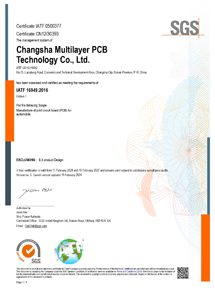

and synchronous operation with IATF16949.
1
Acceptance standard
Regular standard: IPC class 2 Special standard: IPC class 3
Customized standard: GJB362B
2
Quality control
Whole Process Quality Control
3
Quality Improvement Services
Assist customers to formulate quality standards.
Cooperate with customer on experiments to enhance product performance.
4
Laboratory Capabilities
